Technical Information

T-FCPL BRAKES

Brake for electric motors, compatible with models LS, LSMV, PLS, FLSLB, and LSK with power greater than 18.5 kW. Particularly economical, the TFCPL brake’s main strength lies in its versatility and adaptability to various application fields.

Main Features

  • Braking torque from 65 to 600 Nm
  • Various available diameters, compatibility with a wide range of Leroy Somer motors
  • Available H version (Hard, high torques) for sizes 34, 40, and 60
  • Standard voltages: 20V and 175V DC

Download Technical Data Sheet

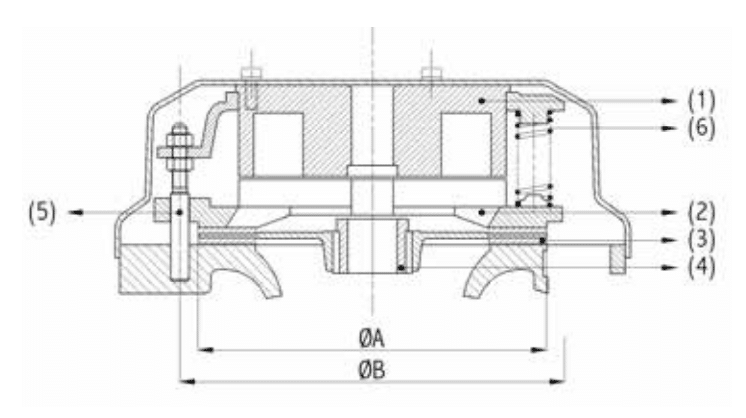

  • (1) Brake coil
  • (2) Movable anchor
  • (3) Brake disc

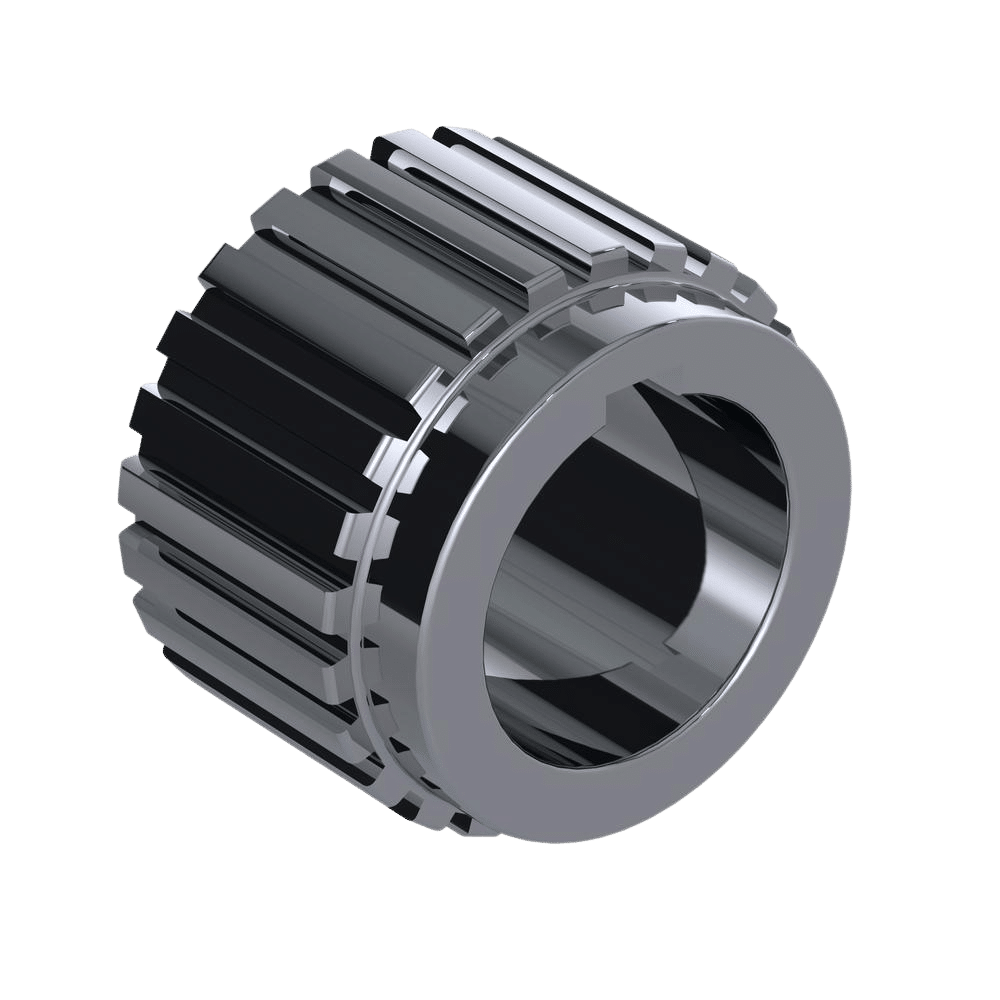

  • (4) Pinion with seal

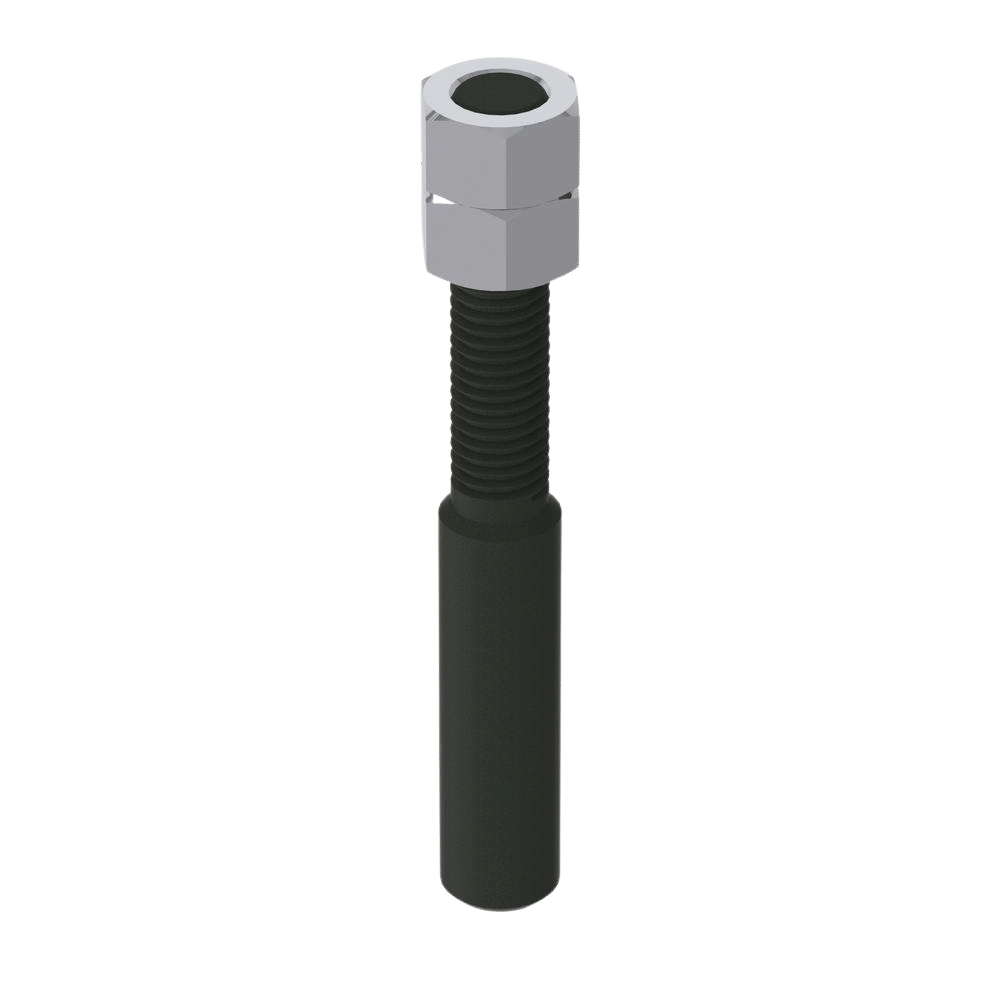

  • (5) Mounting post

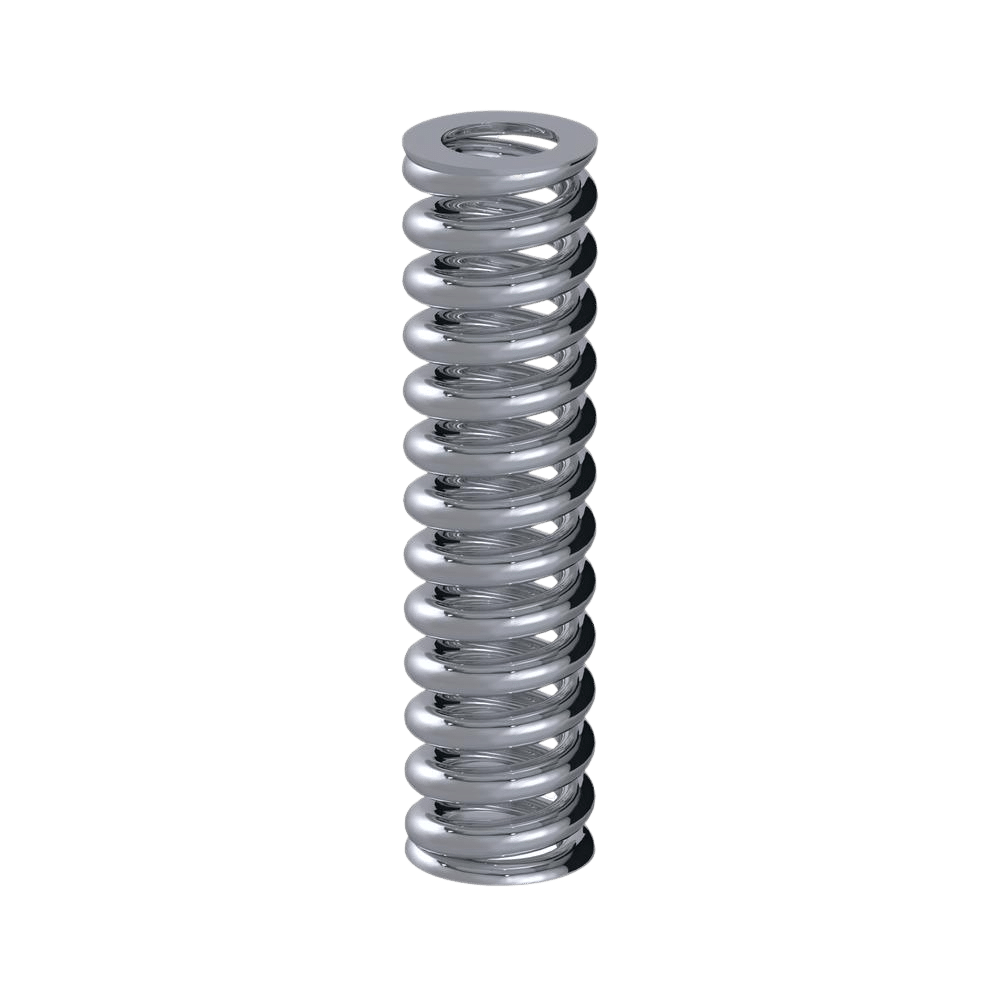

  • (6) Springs
