Technical Information
Brake for crane rotation motors compatible with models LS 90L, LS 112MG, 132 S, 132 M.Particularly economical, the rotation brake is self-ventilating, ensuring optimal heat dissipation even under high workloads.

MAIN FEATURES

  • Braking torque from 6 to 32 Nm
  • Three main sizes (90, 112, 132), compatible with a wide range of LS motors
  • Standard voltage: 20 V DC
  • Wide air gap: long working periods without the need for maintenance
  • Self-ventilating
  • Optional manual release devices

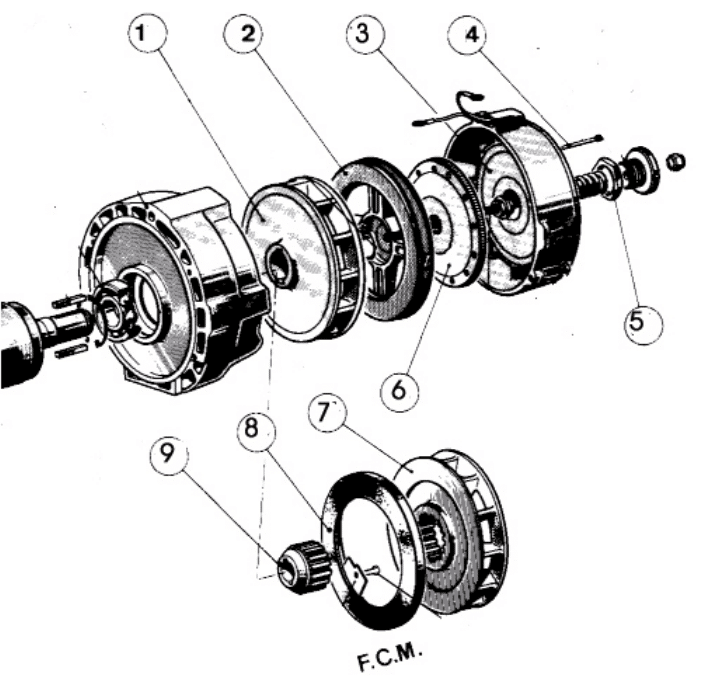

T-FCO T-FCL

  • (1) Fan disc with keyway
  • (2) Gear with seal
  • (3) Brake coil
  • (4) Positioning screw

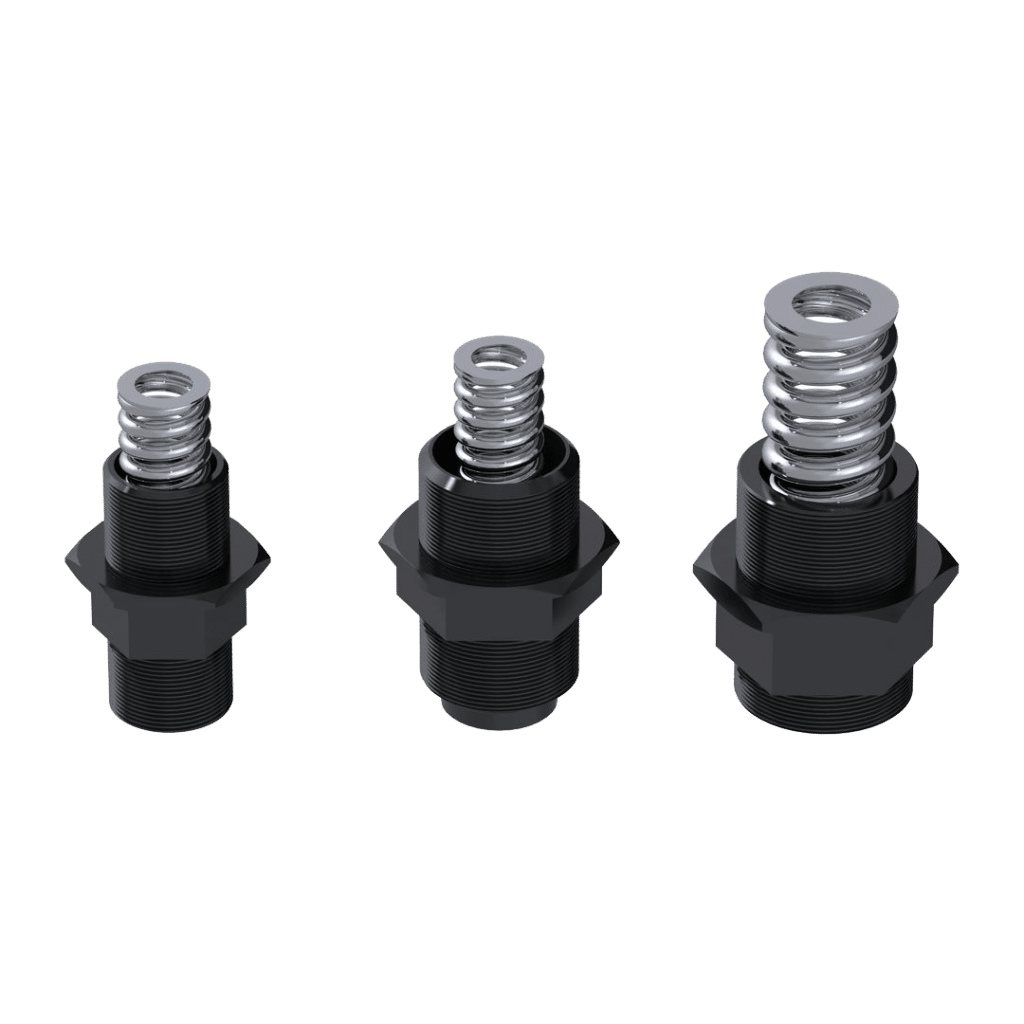

  • (5) Spring box

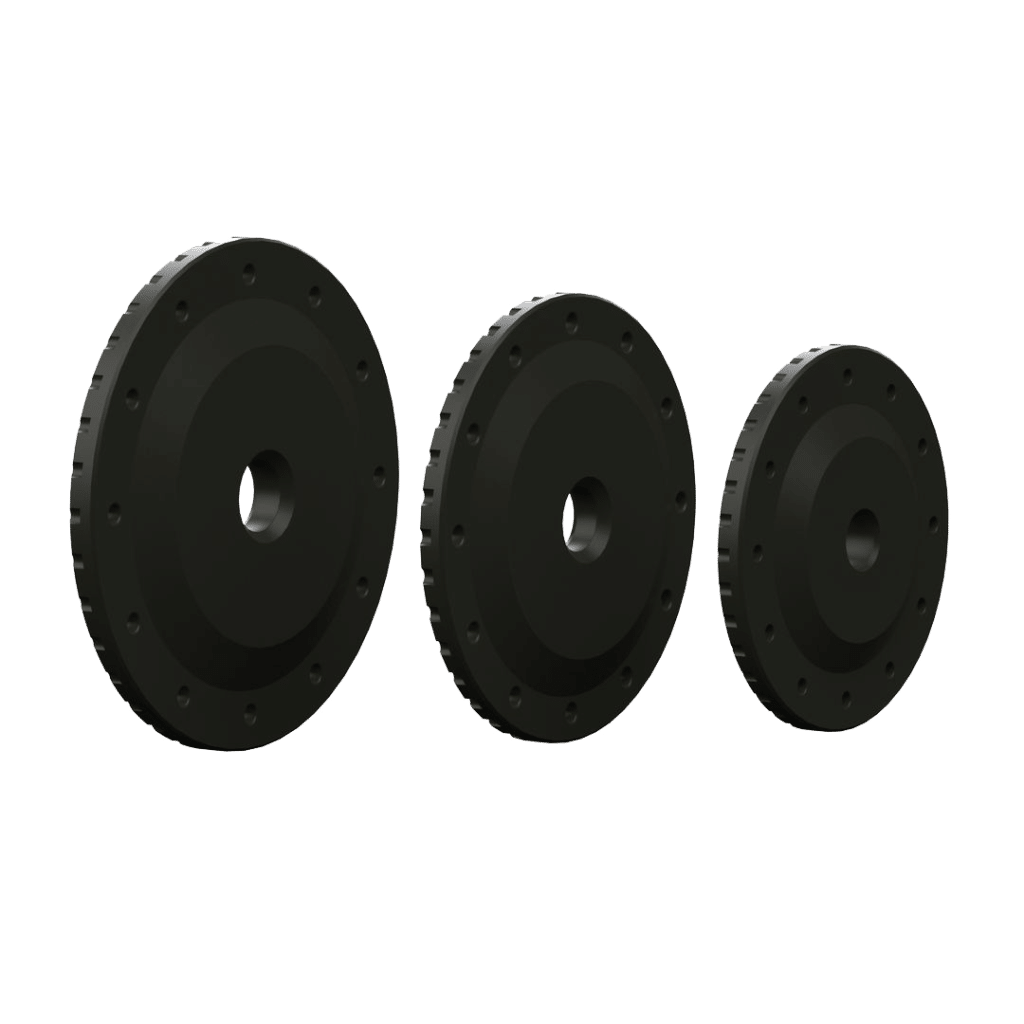

  • (6) Adjustment disc

T-FCM

  • (7) Fan disc hub
  • (8) Removable gear

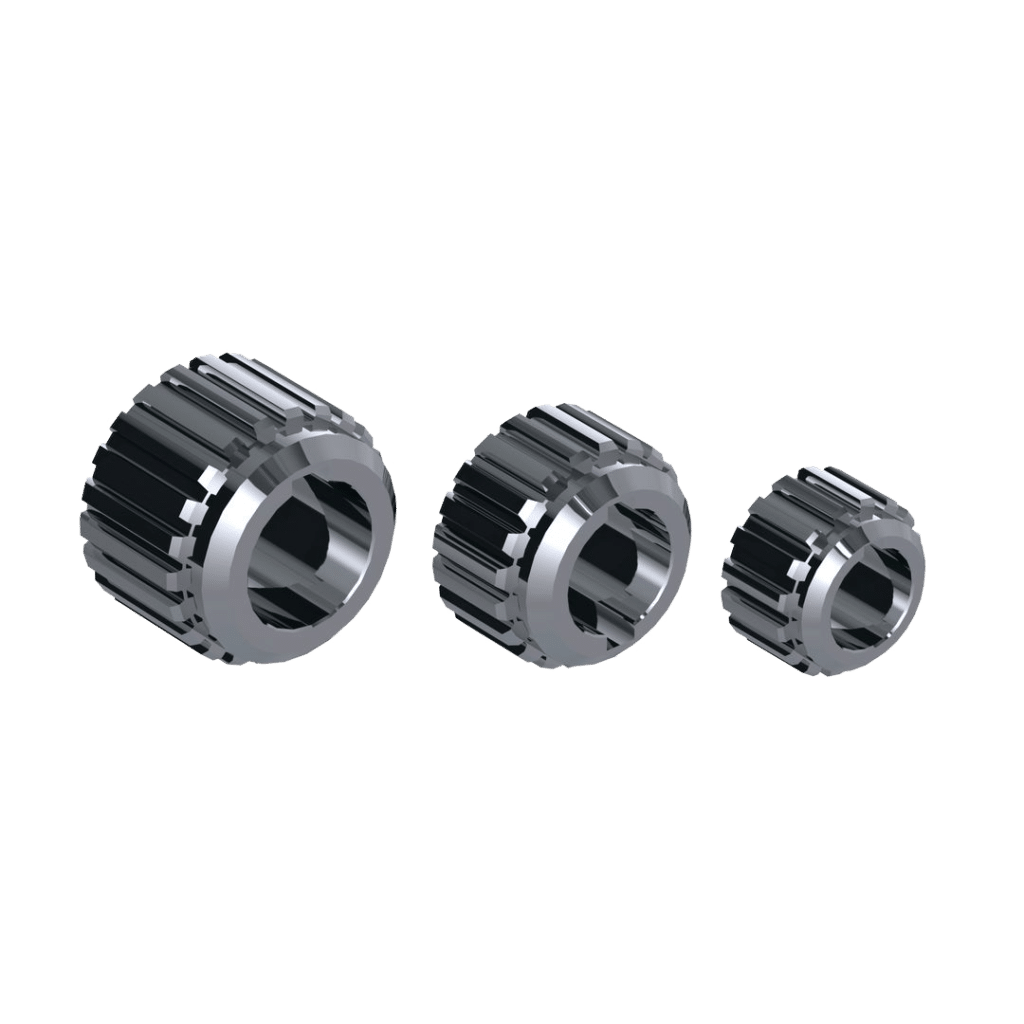

  • (9) Pinion
