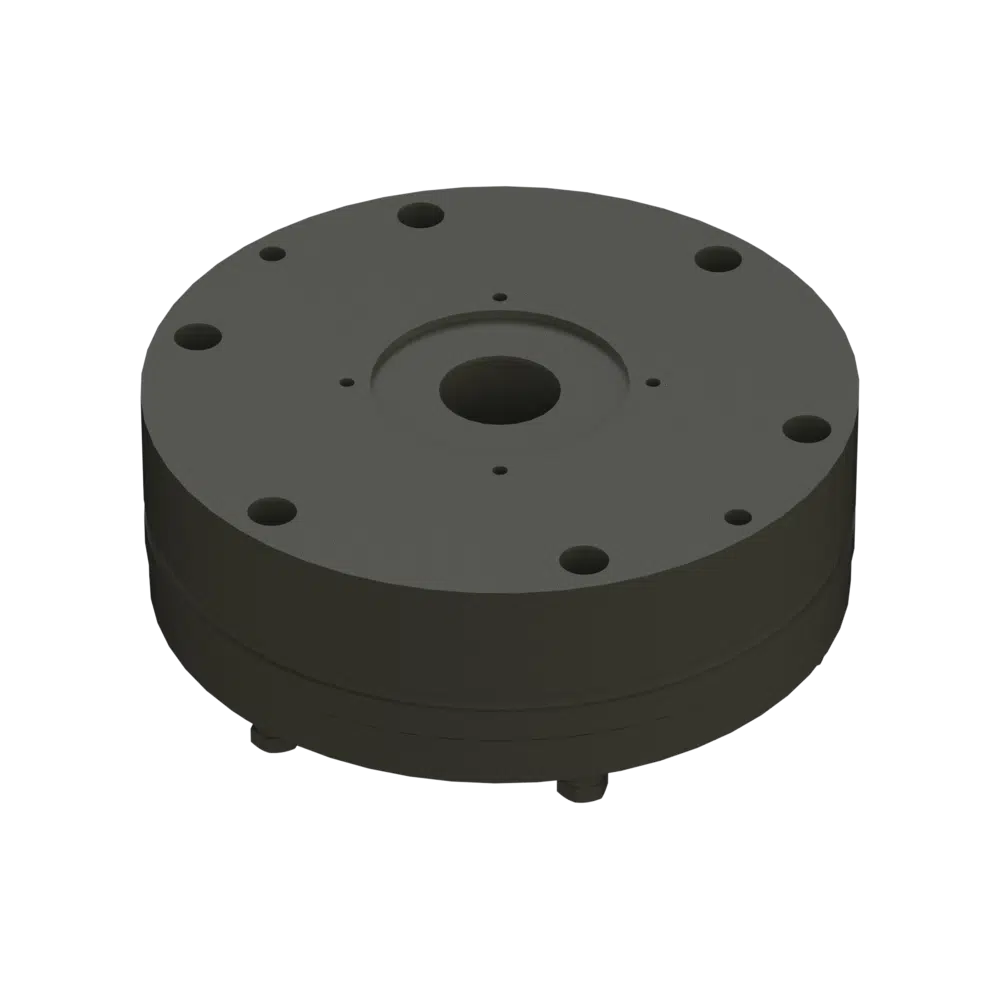

Electromechanical Negative Brake (Rest Position Controlled) in Direct Current

Available in numerous sizes, with braking torque ranging from 15 to 750 Nm, and complete with accessories such as customizable motor flanges, manual lever release, and automatic release (for the “flagging” of crane rotation motors). Available in both fixed or adjustable braking torque versions (with collar). The complete brake assembly is supplied pre-adjusted to the required braking torque value specified by the customer, with preset air gap, ensuring maximum ease and speed of installation.

MAIN FEATURES

• Nominal braking torque from 15 to 750 Nm
• Fixed or adjustable braking torque
• Standard supply voltage 24V – 190V DC
• Customizable supply voltage on customer request, with no extra charge
• High working capacity with a thick air gap, allowing for long working periods with reduced maintenance
• Immediate installation: torque and air gap pre-adjusted
• Suitable for operation at low temperatures (-20°C)
