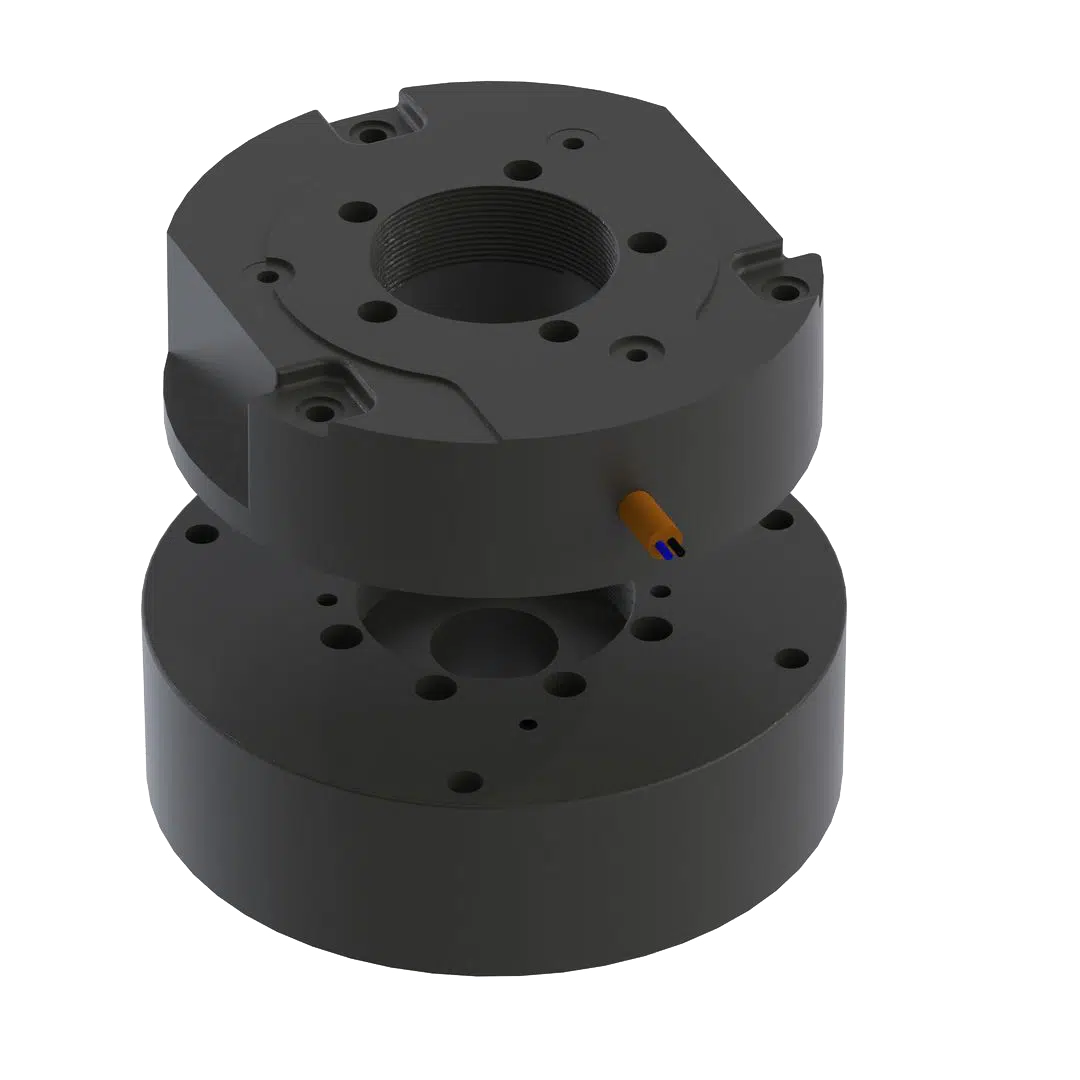

Technical Information
Download Technical Data Sheet
- Maximum braking torque from 15 to 750 Nm
- Fixed or adjustable brake torque
- Standard voltages: 24, 180 V d.c. (other voltages available on request)
- Low power consumption, low heat dissipated during normal operations
- Easy installation: torque and airgap thickness pre-set
- Suitable for use at low temperatures
- Available H (high torque) and D (double brake disc) version
Product Table
| Cod. Item | Description | Torque (Nm) | Installation / Details | Voltage (V) | 2D | Price | |
|---|---|---|---|---|---|---|---|
| 805006009 | KIT TK05/05 + TK 05/03 | - | Login | ||||
| BFK458-10 ROTORE | BRAKE DISC BFK458-10 (K4) Ø95-H20-Z26 | - | Login | ||||
| BFK458-12 ROTORE | BRAKE DISC BFK458-12 (K5) Ø115-H25-Z30 | - | Login | ||||
| BFK458-14 ROTORE | BRAKE DISC BFK458-14 (K6) Ø125-H30-Z34 | - | Login | ||||
| BFK458-16 ROTORE | BRAKE DISC BFK458-16 (K7) Ø150-H30-Z26 | - | Login | ||||
| BFK458-18 ROTORE | BRAKE DISC BFK458-18 (K8) Ø174-H35-Z31 | - | Login | ||||
| BFK458-20 ROTORE | BRAKE DISC BFK458-20 (K9) Ø205-H35-Z34 | - | Login | ||||
| BFK458-25 ROTORE | BRAKE DISC BFK458-25 (K10) Ø250-H50-Z46 | - | Login | ||||
| DF 110 | DOUBLE BRAKE 180 V 110 Nm | - | Login | ||||
| DF 70 | DOUBLE BRAKE 180V 72Nm | - | Login | ||||
| TBK 07/09 | MOTOR PLATE DIS.TBK07FF-132r02 | - | - | Login | |||
| TDS GR06 | GR 06 ALUMINUM BRAKE DISC Ø115 | - | Login | ||||
| TK 04 | BRAKE ASSEMBLY TK 04 | 15 | 3xM6 Ø112 | 24/190V CC | - | Login | |
| TK 04/01 | COMPLETE BRAKE COIL | 15 | 3xM6 Ø112 | 24/190V CC | - | Login | |
| TK 04/03 | BRAKE DISC Ø94mm Z15 | - | Login | ||||
| TK 04/05 | SPLINED HUB Z26 H20 Ø10mm | - | Login | ||||
| TK 05 | BRAKE ASSEMBLY TK 05 | 30 | 3xM6 Ø132 | 24/190V CC | - | Login | |
| TK 05/01 | COMPLETE BRAKE COIL 24V | 30 | 3xM6 Ø132 | 24/190V CC | - | Login | |
| TK 05/01A | COMPLETE BRAKE COIL 190V | 30 | 3xM6 Ø132 | 24/190V CC | - | Login | |
| TK 05/03 | BRAKE DISC Ø116mm Z20 | - | Login | ||||
| TK 05/05 | SPLINED HUB Z20 H25 Ø20mm | - | Login | ||||
| TK 06 | BRAKE ASSEMBLY TK 06 | 60 | 3xM8 Ø145 | 24/190V CC | - | Login | |
| TK 06/01 | COMPLETE BRAKE COIL 24VDC | 60 | 3xM8 Ø145 | 24-105-205 | - | Login | |
| TK 06/03 | BRAKE DISC Ø127mm Z20 | - | Login | ||||
| TK 06/05 | SPLINED HUB Z20 H25mm Ø25 key 6X6 | - | Login | ||||
| TK 07 | BRAKE ASSEMBLY TK 07 | 75 | 3xM8 Ø170 | 24/190V CC | - | Login | |
| TK 07 D | DOUBLE DISC BRAKE ASSEMBLY | 110 | 3xM8 Ø170 | 24/190V CC | - | Login | |
| TK 07/01 | COMPLETE BRAKE COIL | 75 | 3xM8 Ø170 | 24/190V CC | - | Login | |
| TK 07/03 | BRAKE DISC Ø152mm Z20 | - | Login | ||||
| TK 07/05 | SPLINED HUB Z20 H35mm Ø34mm | - | Login | ||||
| TK 08 | COMPLETE BRAKE ASSEMBLY V24 DC | 150 | 3xM10 Ø196 | 24 VCC | - | Login | |
| TK 08 D | COMPLETE BRAKE ASSEMBLY DOUBLE DISC 24V | 300 | 3xM10 Ø196 | 24 VCC | - | Login | |
| TK 08/01 | COMPLETE BRAKE COIL 24V DC | 150 | 3xM10 Ø196 | 24V CC | - | Login | |
| TK 08/01A | COMPLETE BRAKE COIL 190V DC TK08 | 150 | 3xM10 Ø196 | 190V CC | - | Login | |
| TK 08/03Z20 | BRAKE DISC Ø174mm Z20 STEEL | - | Login | ||||
| TK 08/03Z23 | BRAKE DISC Ø174mm Z23 GALVANIZED | - | Login | ||||
| TK 08/05 | STEEL SPLINED HUB Z20/23 H19/35/40 Ø24/28/32/34mm | - | Login | ||||
| TK 08A D | COMPLETE BRAKE ASSEMBLY DOUBLE DISC 190V | 300 | 3xM10 Ø196 | 190V CC | - | Login | |
| TK 09 | BRAKE ASSEMBLY TK 09 | 250 | 6xM10 Ø230 | 24/190V CC | - | Login | |
| TK 09 D | BRAKE ASSEMBLY TK 09 DOUBLE DISC | 500 | 6xM10 Ø230 | 24/190V CC | - | Login | |
| TK 09/01 | COMPLETE BRAKE COIL 190V | 250 | 6xM10 Ø230 | 24/40/190V CC | - | Login | |
| TK 09/01A | COMPLETE BRAKE COIL 24V | 250 | 6xM10 Ø230 | 24V CC | - | Login | |
| TK 09/03 | BRAKE DISC Z37 Ø207mm HIGH COLLAR ALUMINUM | - | Login | ||||
| TK 09/03 Z28 | BRAKE DISC Ø202mm Z28 | - | Login | ||||
| TK 09/05 | SPLINED HUB Z28 H52 Ø48mm Z37 H60 Ø38mm | - | Login | ||||
| TK CALOTTA | BRAKE COVER CAP TK 05 TK 06 | - | Login | ||||
| TK SEW 02 | COMPLETE BRAKE COIL 24V | 24 CC | - | Login |
